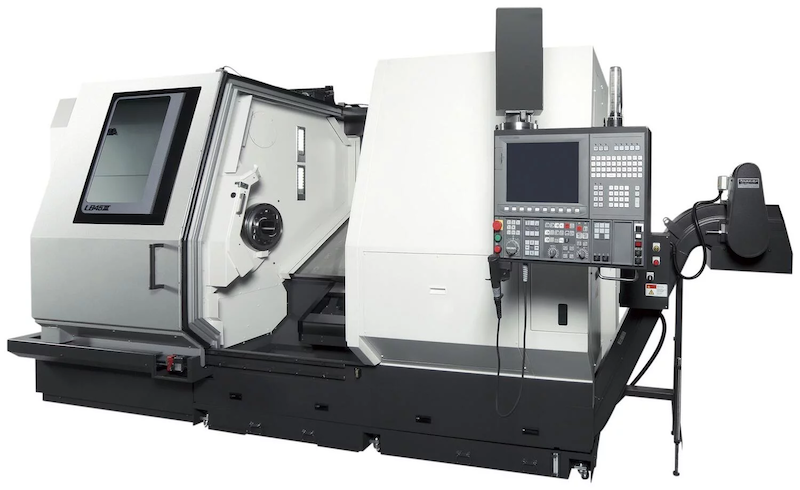

Our LB45III single-saddle horizontal lathe series offers speed, accuracy, and power, along with rotary tooling and long bed capacities. The powerful spindle and drive motor with fast-indexing NC turret mean high productivity for fast and heavy-duty turning. Add the optional M (milling) function for complete multitasking, which includes turning, drilling, milling, and tapping.
Available in:
L: 2-axis (X,Z)
M: 3-axis (X,Z, C spindle axis) with tailstock
MY: X,Y,Z,C 4-axis with tailstock
Technical Data
| Item | LB45III (M, MY) x1,000 or x2,000 x 3,000 x 4,000 |
|---|---|
| Max turning dia | M: φ900 MY: φ1,330 |
| Max turning length | M, MY:1,060/2,060/3,060/4,60 mm |
| Travels | |
| X-axis travel | M : 440 mm MY: 614 mm |
| Z-axis travel | M, MY: 1,060/2,060/3,060/4,60 mm |
| Y-axis travel | M: - MY: 250 (+150 to −100) |
| C-axis control angle | M, MY: 360° |
| Spindle | 12 to 2,800 rpm |
| Spindle nose type | JIS A2-11 [JIS A2-11] |
| Turret | M: Multitasking V12 (VDI) MY: Multitasking V12 turret (Radial) |
| Feed rates: | X: 15 Z: 20 C: 100 min-1 | MY: Y: 6 min-1 |
| Tailstock | MT No.5 |
| Travels Tailstock | 170 mm |
| Motors Main spindle KW | 37/30 (30 min/cont) |
