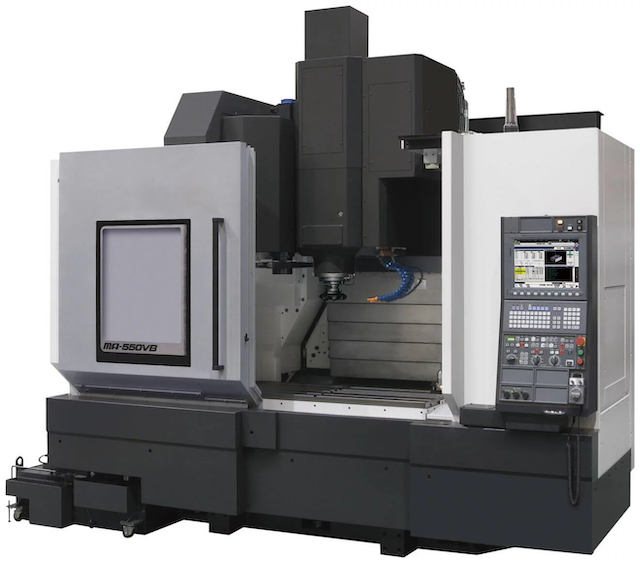

When you want to harness the full potential of power and speed, look no further than the MA-V series. Designed with a dual way system, the MA-V series combines the heavy-duty cutting power of box ways with the high-speed capability of the linear guide. This unique approach creates a versatile machine able to accommodate multiple cutting and finishing needs on a single machine. Extreme power must be balanced by control. Okuma designed the box ways on the MA-V series with an internal coolant system to eliminate overheating. A geared headstock provides maximum torque and power throughout the entire RPM range for heavy machining.
Technical Data
| Item | MA-550VB |
|---|---|
| Travels | |
| X-axis travel | 1,300 mm |
| Z-axis travel | 560 mm |
| Y-axis travel | 560 mm |
| Tool Changer | ATC MAS BT50 |
| Max Number of Tools | 32/48 |
| Table Max Work Dimension | 1,300 x 560 mm |
| Table Max Load capacity | 1000 kg |
| Spindle speed [minˉ¹] | 6000/12000/25000 |
| Motor (VAC) [kW] | 15/11 or 22/15 |
| Rapid traverse X-Y-Z [m/min] | 40/40/30 |
