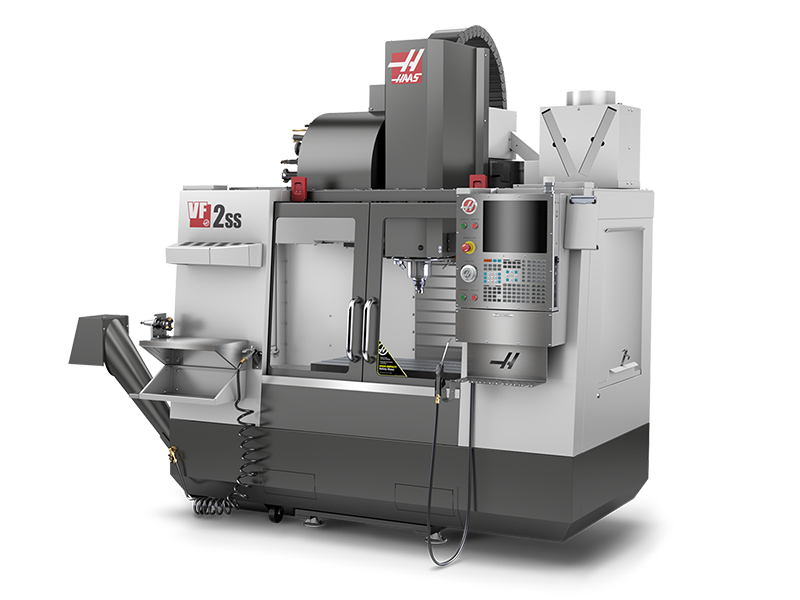

The Haas high-performance Super-Speed vertical machining centers provide the high spindle speeds, fast rapids, and quick tool changes necessary for high-volume production and reduced cycle times. Each SS machine features a 12,000-rpm, inline direct-drive spindle, an ultra-fast side-mount tool changer, and high-speed rapids on all axes. The VF-2SS is our most popular Super-Speed model.
- High-speed spindle
- Fast rapids
- Super-speed side-mount tool changer
Technical Data
| Travels | |
| X Axis | 762 mm |
| Y Axis | 406 mm |
| Z Axis | 508 mm |
| Spindle | 12000rpm |
| Table Length | 914 mm |
| Table Width | 356 mm |
| Taper | CT40 | BT40 | HSK-A63 |
| Axis Motors | |
| Max Thrust X | 8874 N |
| Max Thrust Y | 8874 N |
| Max Thrust Z | 13723 N |
| Tool Changer | |
| Type | SMTC |
| Capacity | 30+1 |
| Max Tool Diameter (full) | 64 mm |
| Max Tool Weight | 5.4 kg |
| Tool-to-Tool (avg) | 1.80 s |
| Chip-to-Chip (avg) | 2.40 s |
