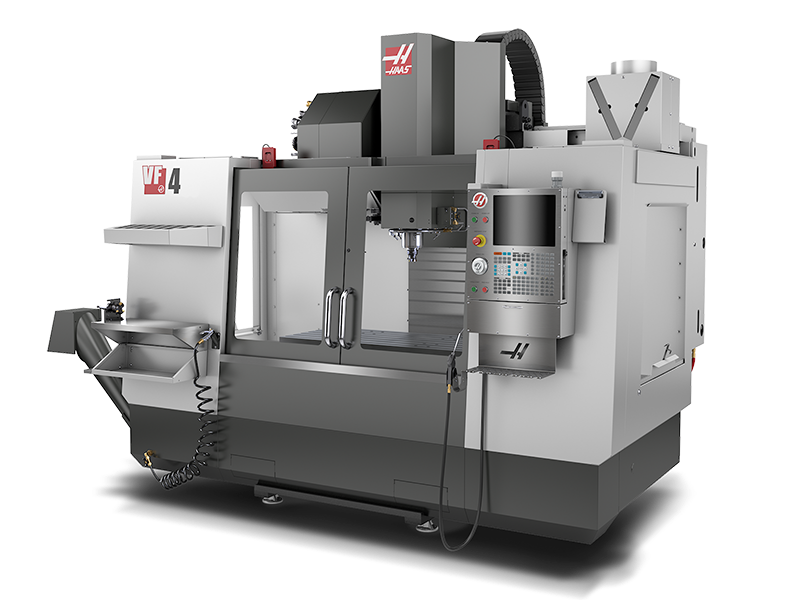

Every VF Series vertical machining center provides outstanding features at an excellent price, and features a wide range of available options to customize your machine to your exact needs. The VF-3 through VF-5 models feature larger work envelopes than the smaller VF-1 and VF-2 models.
- High-power, direct-drive spindles
- Customizable to your needs
- More X- and Z-axis travel
Technical Data
| Travels | |
| X Axis | 1270 mm |
| Y Axis | 508 mm |
| Z Axis | 635 mm |
| Spindle | 8100 rpm |
| Table Length | 1321 mm |
| Table Width | 495 mm |
| Taper | CT40 | BT40 | HSK-A63 |
| Axis Motors | |
| Max Thrust X | 11343 N |
| Max Thrust Y | 11343 N |
| Max Thrust Z | 18683 N |
| Tool Changer | |
| Type | Carousel |
| Capacity of Tools | 20 |
| Max Tool Diameter (full) | 89 mm |
| Max Tool Weight | 5.4 kg |
| Tool-to-Tool (avg) | 4.20 s |
| Chip-to-Chip (avg) | 4.50 s |
